Item No. | JD-G2101A /JD-G2101B/JD-G2101C/ID-G2101D | ||||||
Normal Wattage | 20W | 30W | 40W | 50W | 60W | 80W | 100W |
Power efficiency | 130LM/W | ||||||
Lumen | 2600LM | 3900LM | 5200LM | 6500LM | 7800LM | 10400LM | 13000LM |
LEDSpec | 108units/Philips 3030(20W-50W) 144units/Philips5050(60W-100W) | ||||||

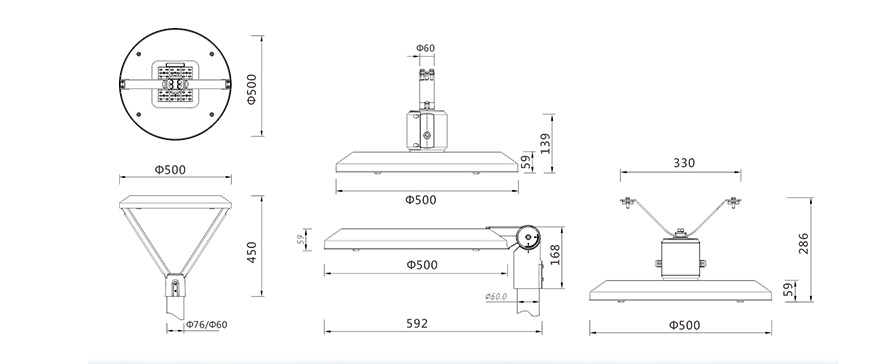

Size(mm) | 500*450 | ||||||
NominalVoltage | AC100-240V50/60HZ | ||||||
LED | Philips Lumileds | ||||||
Driver | Meanwell,INVENTRON,SOSEN,GEER or other brands on request | ||||||
Power Factor (PF) | >0.9 | ||||||
THD | <15 | ||||||
SPD | 10kv (Default)/20kV (available on request) | ||||||

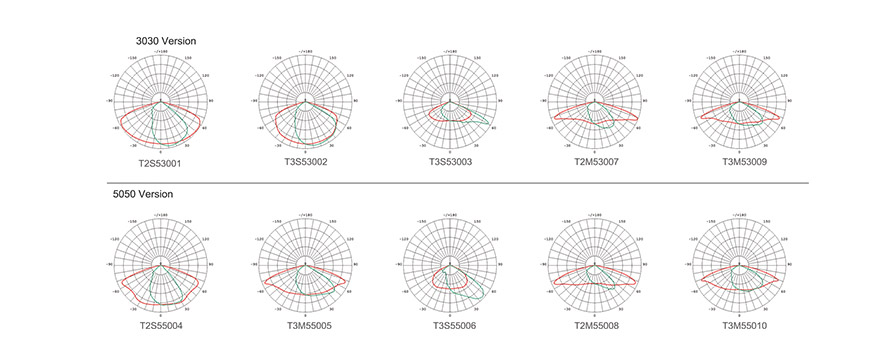

Optics | TypeⅡ,TypeⅢ | ||||||
Standard Deviation of Color Matching | c5SDCM | ||||||
CRI | RA>70 (Default)/Ra>80 | ||||||
CCT | 2700-6500K | ||||||
Body Material | High pressure diecast aluminum | ||||||
Housing Color | Gray (Default) /Black (available on request) | ||||||
Cover Material | Tempered glass | ||||||
Lens Matedal | UV-resistant Polycarbonate | ||||||
Working Environment | -40℃-+50℃ 10%-90%RH | ||||||
Lifespan L70at 25℃ | >100000h | ||||||
Mounting Type | Suspended mounted, Pendant mountedSide entry mounted, Post top mourted | ||||||
Dimmable | 1-10v Dimming (Default)/Timer Dimming | ||||||
Protection Class | ClassⅠ(Default)/ClassⅡ | ||||||
Standards | CE,ROHS,ENEC.CB,LM79,LM80.TM-21,IP65,IK10 | ||||||
Awailable on request | NEMA socket (3/5/7pins),ZHAGAsocket, Short cap, Photocell, Motion sensar,Knife switch, NTC. OLC Solar Compatible,DALI Dimming |
||||||
Warranty | 5years |
We are a professional outdoor lamp manufacturer. Our goal is to provide custom solutions to customers and market. Although the markets, applications, and customers are different, Golden Classic Lighting has a unique idea to guide customers to success. For any consultation and feedback, we will reply patiently and carefully. For any inquiry, we will give reasonable quotation as soon as possible. For any new product, we will communicate with customers and take their ideas into consideration to make the best product. For any order, we will finish the production on time. We will spend time and energy to solve every problem, no matter how common it is. We will always accommodate to you, and you can find that we can speak your language and know your technology. This is why we have successfully cooperated with so many customers from different countries. Golden Classic Lighting base on the enterprise tenet “high standard, high precision, fewer defects”, pay attention to the quality, to build a competitive enterprise. We adhere to the work style “pragmatic and integrity, never give up, team work, keep improving”, sincerely welcome new and old customers.
Company have CE, Rohs certificates. Strong QC team works hard in products lines according to SO9001-2000 quality control system.
