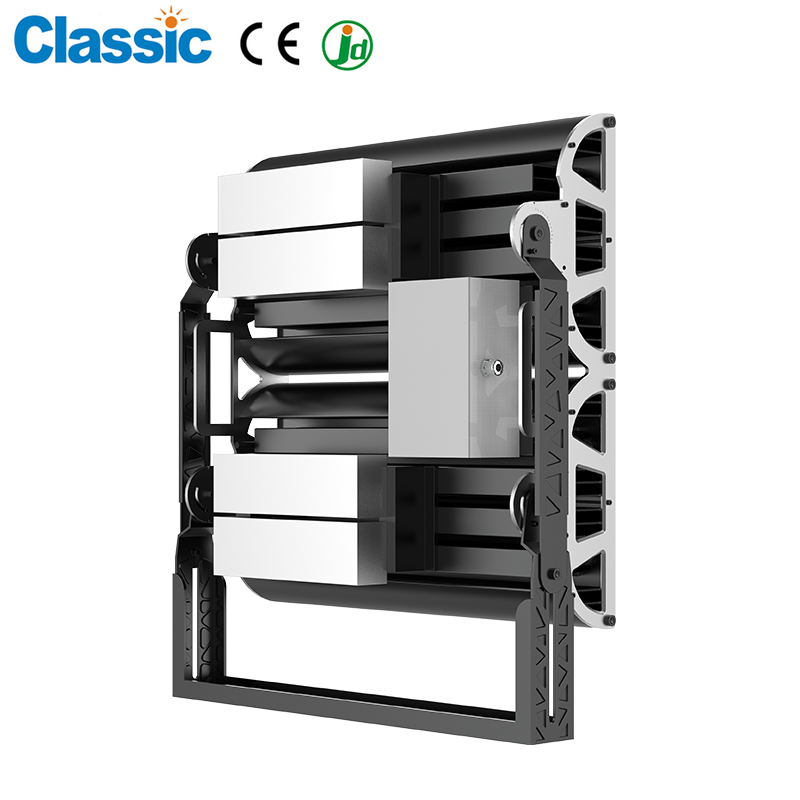

1.Extrude purity aluminum heat sink with Oxidation treatment.
2.Steel bracket with electrophoresis and electrostatic powder coating.
3.spd 10 and spd 20 for options
7.ik08 s/s 304 screws.
8.lens angle adjustment .
9.anti-fall devices.
Product Code | JD-F026A | JD-F026B-46 | JD-F026B-96 | JD-F026C-46 | JD-F026C-96 | JD-F026D-46 | JD-F026D-96 |
Electric Current (mA) | 106mA | 106mA | 94mA | 106mA | 94mA | 94mA | 94mA |
LED Quantity | 92pcs 5050 | 184pcs 5050 | 192pcs 5050 | 368pcs 5050 | 384pcs 5050 | 552pcs 5050 | 576pcs 5050 |
Rate Power | 240W | 480W | 480W | 960W | 960W | 1440W | 1440W |

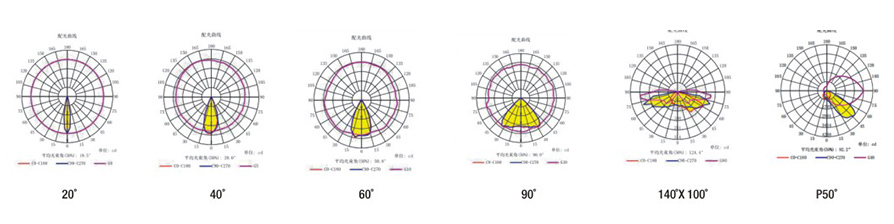

lens degree | 20,40,60,90,120,140*100,P50 | 20,40,60,90,120,140*100,P50 | 20,40,60,90,P50 | 20,40,60,90,120,140*100,P50 | 20,40,60,90,P50 | 20,40,60,90,120,140*100,P50 | 20,40,60,90,P50 |
Color Temperature | 6500/4000/3000K | 6500/4000/3000K | 6500/4000/3000K | 6500/4000/3000K | 6500/4000/3000K | 6500/4000/3000K | 6500/4000/3000K |
Luminary EER | 150lm/W,4000K | 150lm/W,4000K | 150lm/W,4000K | 150lm/W,4000K | 150lm/W,4000K | 150lm/W,4000K | 150lm/W,4000K |
Input Voltage | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V | AC220-240V |
Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
Color Temperature | RA75 | RA75 | RA75 | RA75 | RA75 | RA75 | RA75 |
environment temperature | -40℃ - 50℃ | -40℃ - 50℃ | -40℃ - 50℃ | -40℃ - 50℃ | -40℃ - 50℃ | -40℃ - 50℃ | -40℃ - 50℃ |
ambient humidity | 20%-90% | 20%-90% | 20%-90% | 20%-90% | 20%-90% | 20%-90% | 20%-90% |
LED life time | 70000h | 70000h | 70000h | 70000h | 70000h | 70000h | 70000h |
Protestion Grade | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
Net Weight | 7.0kg | 20.0kg | 19.0kg | 32.0kg | 31kg | 44kg | 42kg |
Gross Weight | 8.0kg | 22.0kg | 21.0kg | 34.5kg | 33.5kg | 47kg | 45kg |

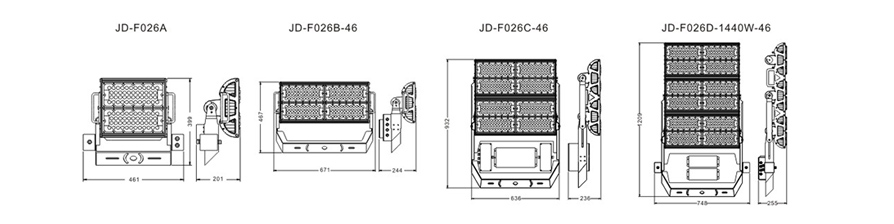

Product Size | 461*399*201mm | 671*467*244mm | 621*467*244mm | 932*636*236mm | 932*586*236mm | 1209*748*255mm | 1209*698*255mm |
We are a professional outdoor lamp manufacturer. Our goal is to provide custom solutions to customers and market. Although the markets, applications, and customers are different, Golden Classic Lighting has a unique idea to guide customers to success. For any consultation and feedback, we will reply patiently and carefully. For any inquiry, we will give reasonable quotation as soon as possible. For any new product, we will communicate with customers and take their ideas into consideration to make the best product. For any order, we will finish the production on time. We will spend time and energy to solve every problem, no matter how common it is. We will always accommodate to you, and you can find that we can speak your language and know your technology. This is why we have successfully cooperated with so many customers from different countries. Golden Classic Lighting base on the enterprise tenet “high standard, high precision, fewer defects”, pay attention to the quality, to build a competitive enterprise. We adhere to the work style “pragmatic and integrity, never give up, team work, keep improving”, sincerely welcome new and old customers.
Company have CE, Rohs certificates. Strong QC team works hard in products lines according to SO9001-2000 quality control system.
