产品型号 | Product Code | JD-2018-A | JD-2018-B | JD-2018-C | JD-2018-D |
额定功率 | Rated Power | 60W | 120W | 200W | 240W |
色温 | Color Temporature | 3000-6500K | |||
初始光通量 | Luminous Flux | 130-170lm/w | |||
输入电压 | Input Voltage | AC90-305V | |||
频率 | Frequency Range | 50/60Hz | |||
功率因数 | Power Factor | PF≥0.9 | |||
显色指数 | CRI | Ra>70 | |||
工作环境温度 | Temperature of Working Candition | -40-45℃ | |||
工作环境湿度 | Humidity of Working Cendition | 20%-90% | |||
LED寿命 | LED Lifetime | 50000h | |||
防护等级 | Protection Grade | IP66 | |||
安装直径 | Instaiaton Pipe Diameter | φ60mm | |||
安装高度 | Installation Pipe Dia | 3-8m | 6-10m | 8-12m | 10-14m |
净重 | Net Weight | 2.9KG | 3.8KG | 5.7KG | 7.2KG |
毛重 | Gross Weight | 3.8KG | 5.4KG | 6.3KG | 7.8KG |

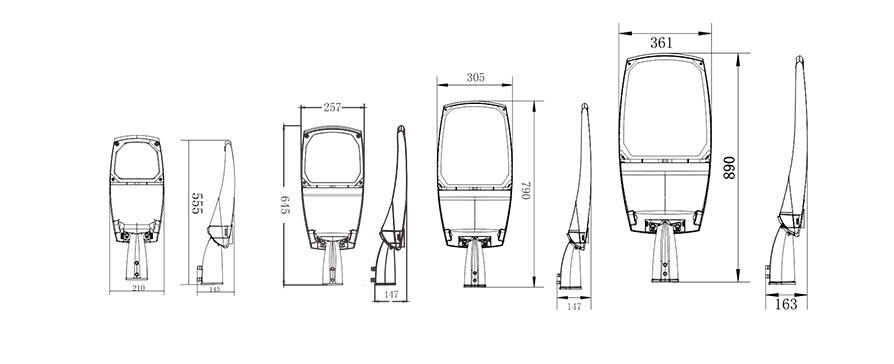

产品尺寸 | Product Size | 555x210x143mm | 645x257x147mm | 790x305x147mm | 890x361x163mm |
包装尺寸 | Packing Size | 600x260x165mm | 680x270x160mm | 820x320x160mm | 970x370x180mm |
We are a professional outdoor lamp manufacturer. Our goal is to provide custom solutions to customers and market. Although the markets, applications, and customers are different, Golden Classic Lighting has a unique idea to guide customers to success. For any consultation and feedback, we will reply patiently and carefully. For any inquiry, we will give reasonable quotation as soon as possible. For any new product, we will communicate with customers and take their ideas into consideration to make the best product. For any order, we will finish the production on time. We will spend time and energy to solve every problem, no matter how common it is. We will always accommodate to you, and you can find that we can speak your language and know your technology. This is why we have successfully cooperated with so many customers from different countries. Golden Classic Lighting base on the enterprise tenet “high standard, high precision, fewer defects”, pay attention to the quality, to build a competitive enterprise. We adhere to the work style “pragmatic and integrity, never give up, team work, keep improving”, sincerely welcome new and old customers.
Company have CE, Rohs certificates. Strong QC team works hard in products lines according to SO9001-2000 quality control system.
