1.AC85-265 50/60Hz universial voltage.
2.Light Efficacy up to 150lm/W.
3.High lumen 3030 SMD light source,LM-80 Reports and .ies files are ready.
4.Die-casting aluminum body,anti-corrosion painting.
5.IP66 waterproof for outdoor use.
1.AC85-265 50/60Hz universial voltage.
2.Light Efficacy up to 150lm/W.
3.High lumen 3030 SMD light source,LM-80 Reports and .ies files are ready.
4.Die-casting aluminum body,anti-corrosion painting.
5.IP66 waterproof for outdoor use.
技术参数Specification
产品型号 | Product Code | JD-YZ02-A | JD-YZ02-B | JD-YZ02-C | JD-YZ02-D |
LED数量 | LED Quantity | 3030 5OPCS | 3030 10OPCS | 3030 15OPCS | 3030 20OPCS |
额定功率 | Rate Power | 50W | 100W | 150W | 200W |
色温 | Color Temperature | 2700-6500K | |||
灯具光效 | Luminary EER | MAX 150LM/W | |||
输入电压 | InputVoltage | AC100-277V 50/60Hz | |||
功率因数 | Power Factor | >0.9 | |||
显色指数 | CRI | Ra80 | |||
工作环境温度 | Temperature of working condition | -30℃-45℃ | |||
颜色 | Color | Black/Grey | |||
LED寿命 | LED life time | 70000h | |||
防护等级 | Protestion Grade | IP66 | |||
安装管径 | Installation Pipe Dia | φ50mm | φ60mm | ||
透镜角度 | Degree Beam | 70x140° | |||
安装高度 | Net Weight | 1.1KG | 1.4KG | 1.9KG | 2.1KG |

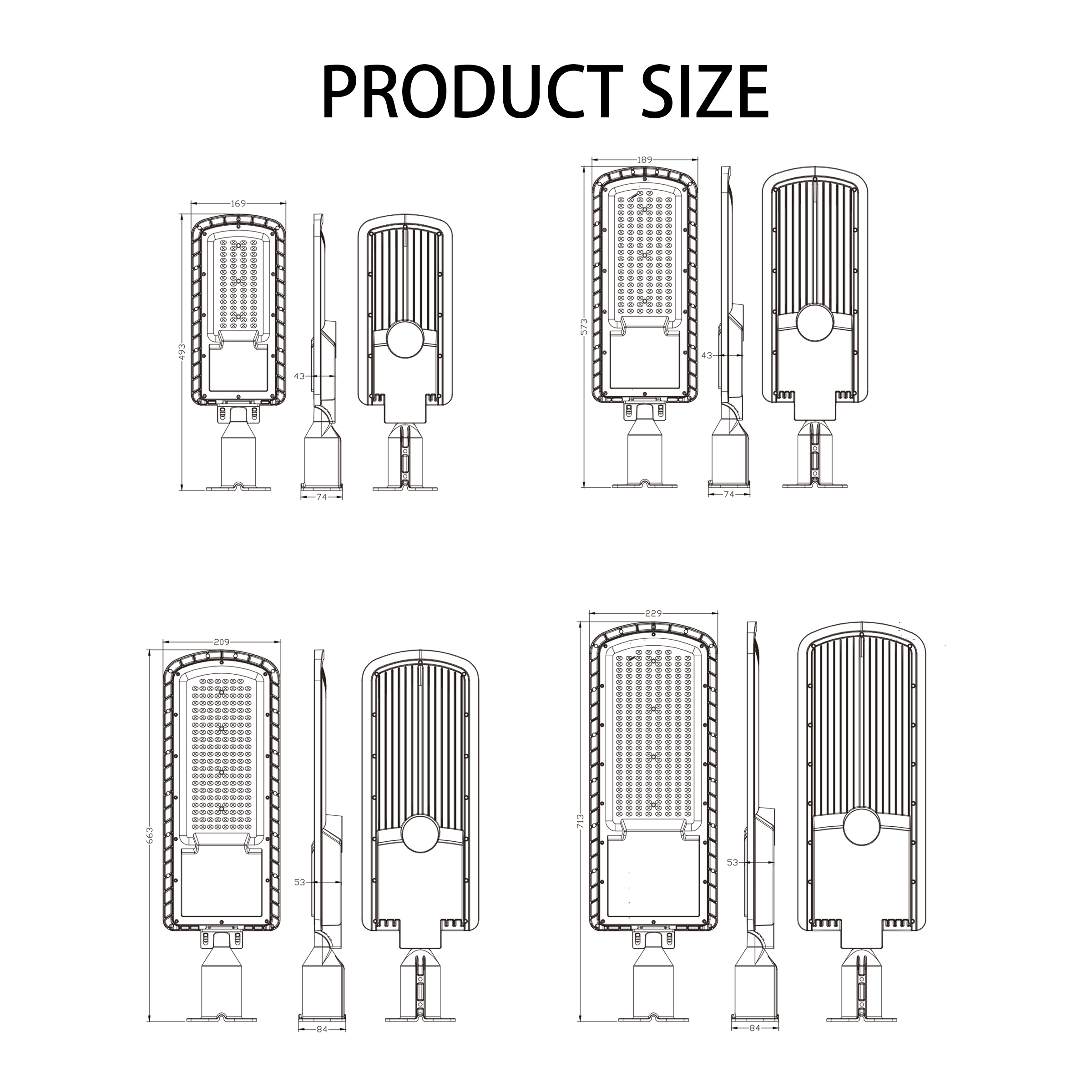

产品尺寸 | Product Size | 493*170*70mm | 573*190*70mm | 665*210*80mm | 715*230*80mm |
包装尺寸 | Packing Size | 405*365*440mm | 405*405*520mm | 470*225*620mm | 470*245*670mm |
装箱数 | Pcs/Carton | 10 | 10 | 5 | 5 |
Packing sikce is cuter size of bax
All parameters are memured a 25℃ amblert temperature,35% humidity experimental envitonment.
We are a professional outdoor lamp manufacturer. Our goal is to provide custom solutions to customers and market. Although the markets, applications, and customers are different, Golden Classic Lighting has a unique idea to guide customers to success. For any consultation and feedback, we will reply patiently and carefully. For any inquiry, we will give reasonable quotation as soon as possible. For any new product, we will communicate with customers and take their ideas into consideration to make the best product. For any order, we will finish the production on time. We will spend time and energy to solve every problem, no matter how common it is. We will always accommodate to you, and you can find that we can speak your language and know your technology. This is why we have successfully cooperated with so many customers from different countries. Golden Classic Lighting base on the enterprise tenet “high standard, high precision, fewer defects”, pay attention to the quality, to build a competitive enterprise. We adhere to the work style “pragmatic and integrity, never give up, team work, keep improving”, sincerely welcome new and old customers.
Company have CE, Rohs certificates. Strong QC team works hard in products lines according to SO9001-2000 quality control system.
